Wiring Diagrams 1 :: MCL

MCL cable from audio systems to terminal strip in MCL2 relay box. NOTE: Use pre-made MCL cables for connection to the audio system whenever possible:

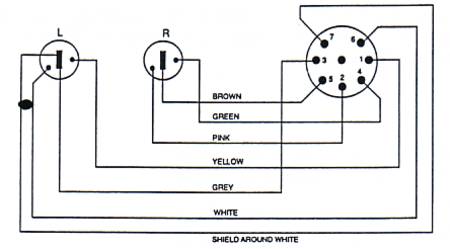

MCL cable, 2 x 3-pin MCL to 8-pin DIN plug. For connection between audio systems and link system via an 8-pin wall plate.  Use pre-made MCL cable for connection to the audio system if at all possible:

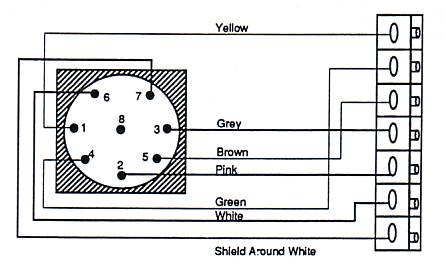

MCL cable between 8-pin DIN wall plate and MCL terminal strip.  For connection between audio system and link system via an 8-pin wall plate:

All wiring diagrams to plugs and sockets are shown from the soldering side.
