Wiring Diagrams 2 :: Speaker Link / PowerLink |
Speaker link cable from audio system or MCL to 4-pin wall plate using speaker plug number 7220040. Use unterminated link cable number 6250246 or 6250267:
| green or brown | signal hot |
| shield | signal ground |
| white | display data |
| shield | data ground |

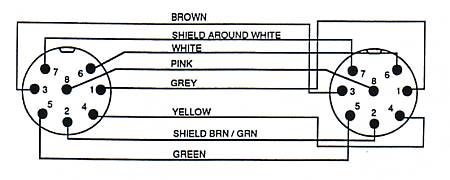

PowerLink cable, male to male, using unterminated cable number 6250277 and plug number 7220345. Maximum length 100m:
| brown | left audio signal |
| green | right audio signal |
| shield: brown/green | left/right ground |
| grey | on/off |
| yellow | on/off |
| pink | APHC |
| white | data |
| shield: white | data ground |

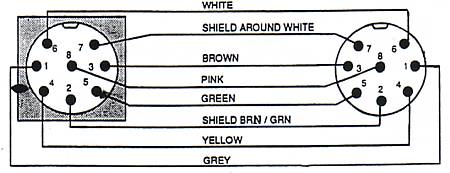

PowerLink cable, male to female (extension) using unterminated cable number 6250277, male 8-pin plug number 7220345 and female 8-pin plug number 7220235 or 8-pin DIN wall plate number 7210473. Maximum length component to component: 100m:
| brown | |
| green | |
| shield: brown/green | |
| grey | |
| yellow | |
| pink | |
| white | |
| shield: white |

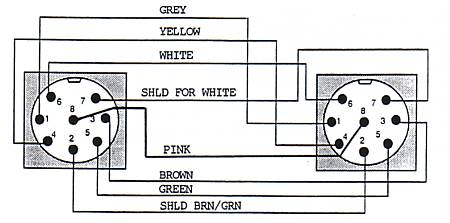

PowerLink cable, female to female, using unterminated cable number 6250277 and two female 8-pin DIN plugs number 7220235 or two 8-pin DIN wall plates number 7210473:
| brown | |
| green | |
| shield: brown/green | |
| grey | |
| yellow | |
| pink | |
| white | |
| shield: white |

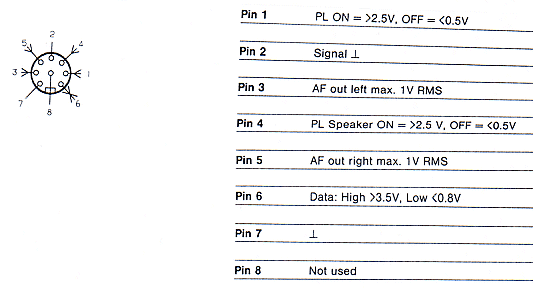

PowerLink 1 & 2:
All wiring diagrams to plugs and
sockets are shown from the soldering side.
 |
|
