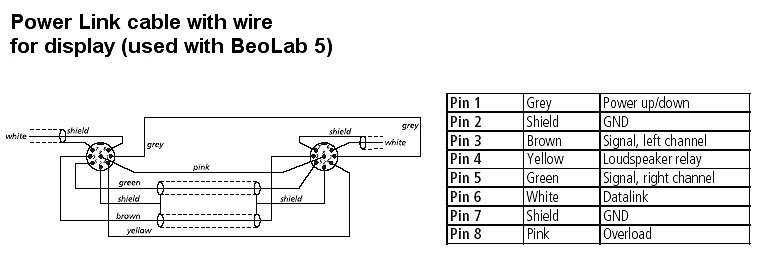

Wiring Diagrams 5 :: Misc

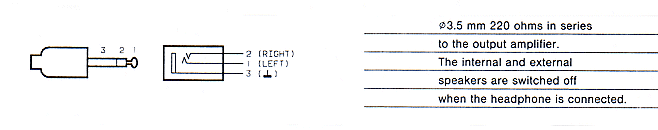

Headphones:

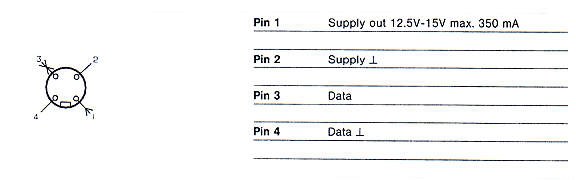

B&O Motorised Stand:

Note that the technical specifications for the motorised stand changed from Product ref. MX6/7 to MX8

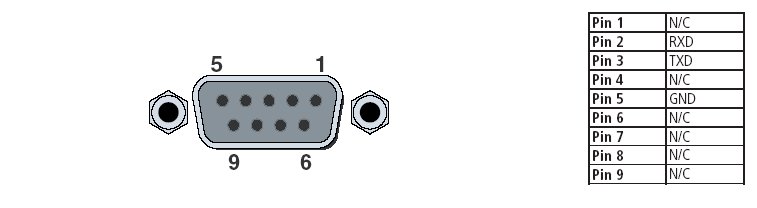

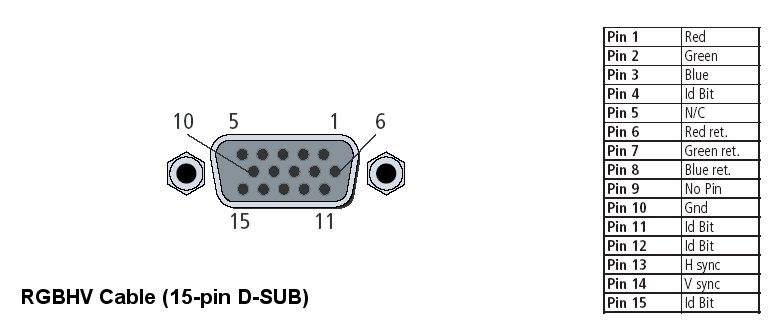

All wiring diagrams to plugs and sockets are shown from the soldering side.
