Wiring Diagrams 4 :: MasterLink

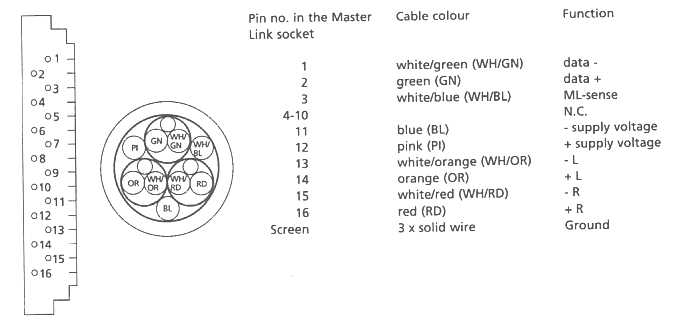

MasterLink cable:

Note: For older-type ML cable, the colour coding is slightly different. The above image refers to current ML cable.

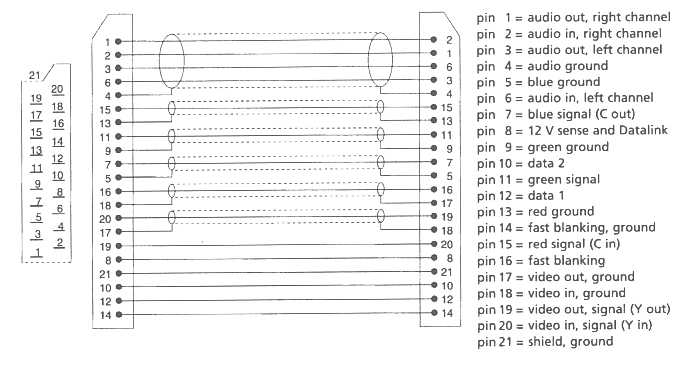

21-pin A/V cable with RGB connection:

Receiver cable:

All wiring diagrams to plugs and sockets are shown from the soldering side.
